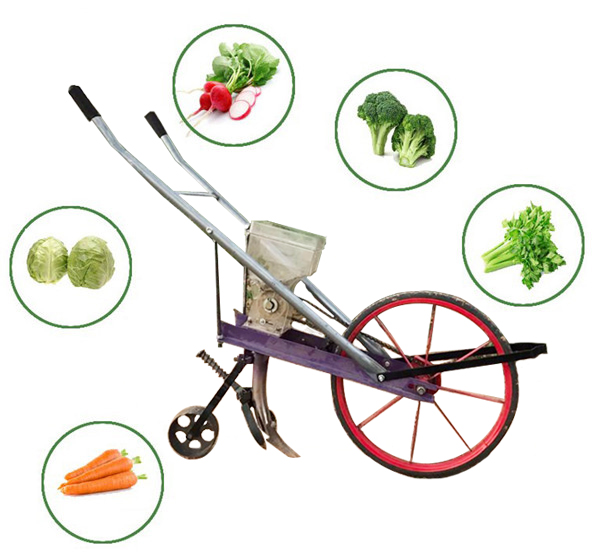

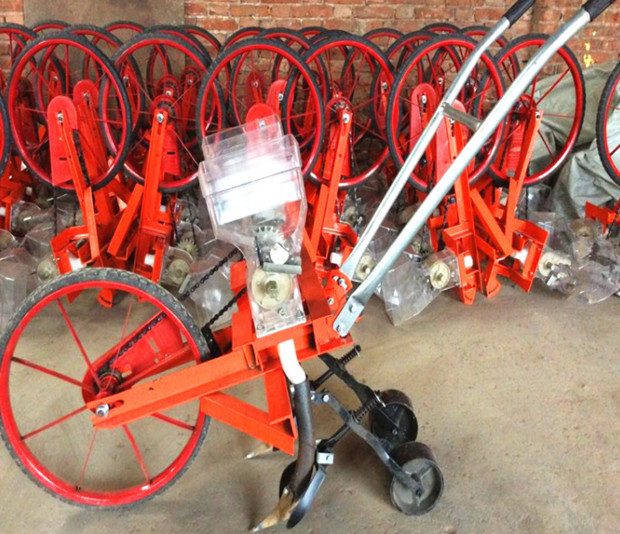

Model UGS-TTM-1 One-hopper One-row Seeder can sow various vegetable seeds, such as turnip, carrot, cabbage, rapeseeds, spinage (spinach), Chinese chives, onion, sugarbeet, lettuce, celery, green onion, pepper(chili), etc. It can also sow millet, sorghum, quinoa, sesame, alfalfa, cherry, etc. It can help you in ditching, seeding, fertilizing and earch mulching.

Our advantages:
1. Its convenient operation (even the elderly and women can use it);
2. No oil or power consumption (totally by manual push);
3. The special ground opener/ plough foot design, which can directly sow on any non-tilled soil, and the light and flexible body design, which can plant on various terrains, even semi-slopes and mountains areas;
4. Its multi-functions (can sow all kinds of vegetable seeds due to the advanced and scientifc inner sowing plate design);
5. Durable material (with at least 10 years of use without repairs). We choose the transparent PVC material with high elasticity and pressure resistance of course, and also have done the experiment for its performance- It will not break or wear out even if an adult weighing 80kg stands on it. Please check the Seeds Container Material Test Video below;
6. Affordable cost, and even ordinary farmers can have it!

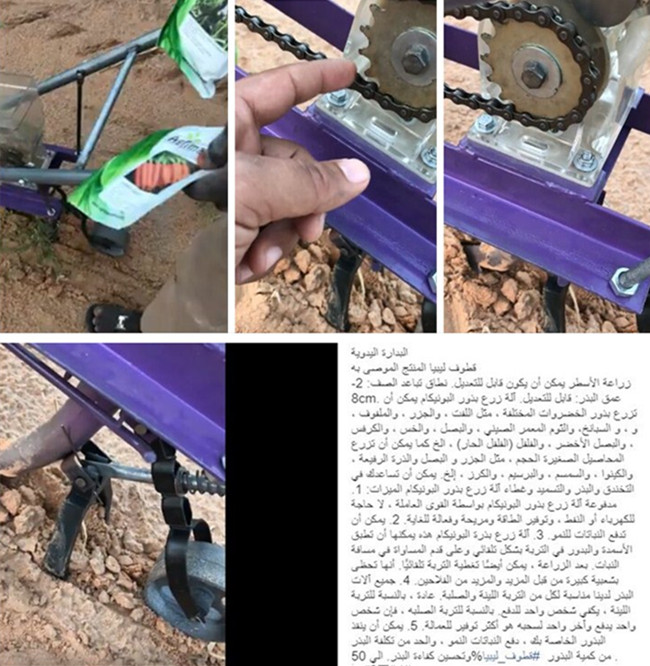

Operated by the client from Libya:

VIDEO (TOMATO SEEDS SOWING TEST):

MORE SOWING TEST:
http://www.corn-thresher.com/news/Seeding-Machine-Test-Running-Philipp.html

We had the seeding test for onion seeds, tomato seeds, sesame seeds, etc. Result: yes, this machine can sow these kind of seeds.

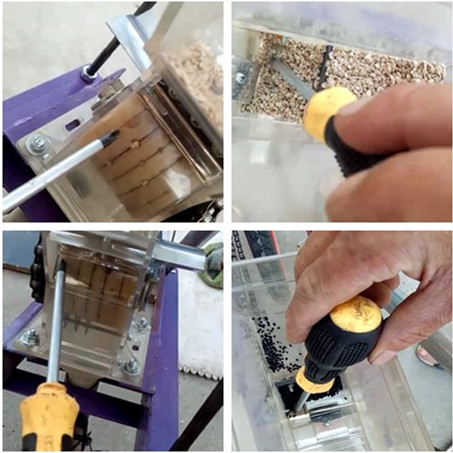

1.we can adjust and choose which groove to sow: the bigger one or smaller one. And we can adjust the sowing quantity.
2.for flat shape of seeds,like onion seeds, we can adjust it to the bigger groove to sow.
3.we can control seeding density.

UGS-TTM-1 One-hopper vegetable seeds planters delivered to Libya:

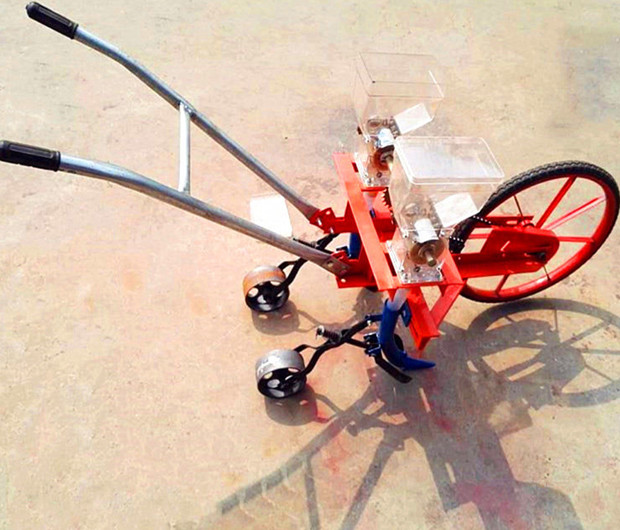

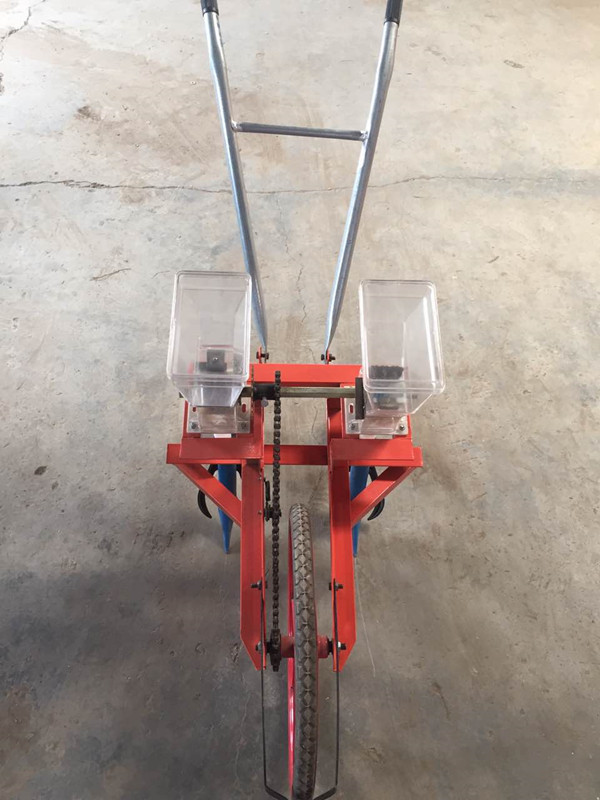

Model UGS-TTM-2 Two-hopper two-row seeder can only sow millet seeds:

Features for UGS-TTM-1:
1. The series of sowing machines are driven by manpower, no need of electricity or oil, energy saving, convenient and highly efficient.
2. They can propel plants to grow.
3. They can apply fertilizer and millet into the soil automatically and equally in plant distance. After sowing, they can also cover the soil automatically. They are quite popular by more and more peasants.
4. All of our seeding machines are suitable for both soft and hard soil. Usually, for soft soil, one person to push is enough. For hard soil, one person to push and another one to pull is more labor-saving.
5. They can save your seeds, propel plants growing, reduce the sowing cost and improve sowing efficiency.
6.The line spacing can be adjustable. Line spacing range: 22- 35cm. Row spacing range: 2-8cm. Sowing depth: adjustable.

UGS-TTM Series of Seeds Sowing Machines Technical Parameter:

Main Parts:

It can adjust row spacing and improve sowing efficiency

Polymer carbon cover, transparent hopper

Chain for power transmission, effort saving

Widened cast iron wheel, good soil covering effect

Installation Method:

STEP 1: First, install the pushing handle


STEP 2: Install the rear wheel and the seeder leg.


STEP 3:Install sowing hopper.


STEP 4:Finally install front-wheel and the iron shelf.



Attentions:
1.Lubricate the shaft, chain wheel and chains first with several drops of engine oil before using.
2.No matter which kind of seeds, when sowing speed is high, then the seed sowing quantity should be a little larger.
3.When sowing is finished, we should clean up mud and oil from the machine. And lubricate the transmission part with engine oil to extend the service life of the machine and prevent rusting.


For Corn/Beans/Peanut Seeder, please click:
http://www.corn-thresher.com/products/Push-Seed-Planter/2017-07-03/Push-Seeding-Machine.html

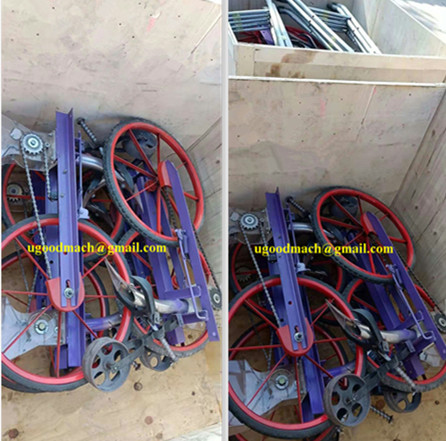

Export-Standard Wooden Packing:
