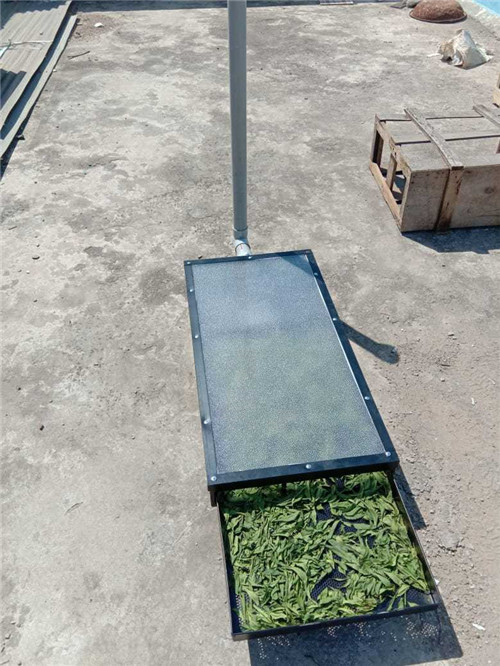

Solar Dryer Drying Machine Direct Heating Stainless Steel for Food

【Features】:Solar Dryer Drying Machine Direct Heating Stainless Steel for Food

E-mail:ugoodmach@gmail.com

Brief Introduction:

Solar Dryer or Solar Drying Machine with Direct Heating Method and Stainless Steel for Food:
1.1 Flat plate type direct heating with stand and chimney
1.2 Suitable for drying all type of perishable agriculture produce
1.3 Drying Type: Direct heating
1.4 No.of drying tray:at least 3
1.5 No.of Collector:1

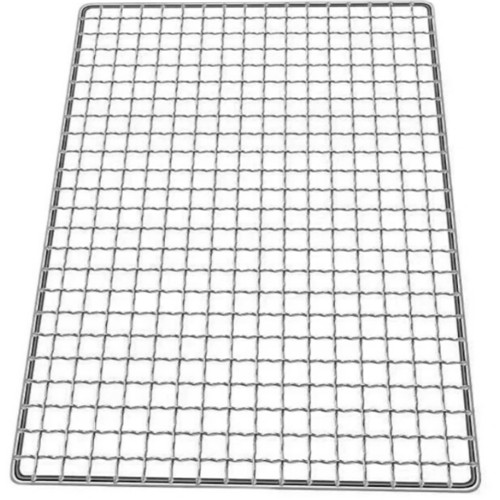

1.6 Tray Mesh: Food grade stainless steel
1.7 Inner Cladding: Aluminium
1.8 Outer Cladding: Gl Sheet
1.9 Insulation: Styrofoam
1.10 Chimney: Not less than 90 cm height
1.11 Drying capacity; 50 kg
1.12 Operating temperature: 55 to 75°℃
1.13 Air heating area: 6.68  m2(72sqfeet)
1.14 Capacity per tray:  3 to 4kg ms Powder coated structure
1.15 10ftX3ft inclined SS 304 fabricated structure with High quality food grade black powder coating with 12 nos ALLUMINIUM PERFORATED tray.

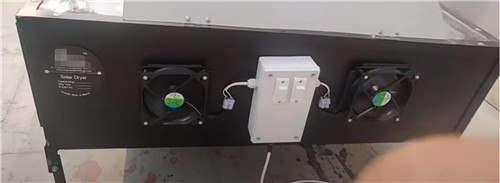

1.16 nos of fan(4") and solar panel 30 watt with proper fan control switch and fan regulating circuit for moisture removal,
1.17 Top Cover UV filter solid Poly Carbonate Sheet Unbreakable
1.18 Proper dust proof insect proof and waterproof construction for hygiene drying of all types of farm produce
2.0 Technical Specifications: Air Collector
2.1 Absorber: Aluminium
2.2 Absorbing Surface:Matt black paint
2.3 Top Cover:UV-proof Acrylic Sheet,at least 3mm
2.4 Insulation:Styrofoam
2.5 Cabinet Dimension(LXBXH);Not less than 140X90X12 cm
2.6 Tray Dimension(LXB):Not less than 90X45 cm
2.7 Collector Dimension(LXBXH): Not less than 70X90X8 cm
2.8 Total Drying Area: Not less than 1.30 m²
Solar Dryer Drying Machine Direct Heating Stainless Steel for Food
Solar Dryer Drying Machine
Solar Dryer Drying Machine
Solar Dryer Drying Machine
Solar Dryer Drying Machine
Solar Dryer Drying Machine

Features:

1. Flat plate type direct heating with stand and chimney, reasonable design;
2. Suitable for drying all type of perishable agriculture produce, food, etc.;
3. Low investment, and high return!

Technical Parameters:

Size: 2550*1000*200mm
Weight: 80kg

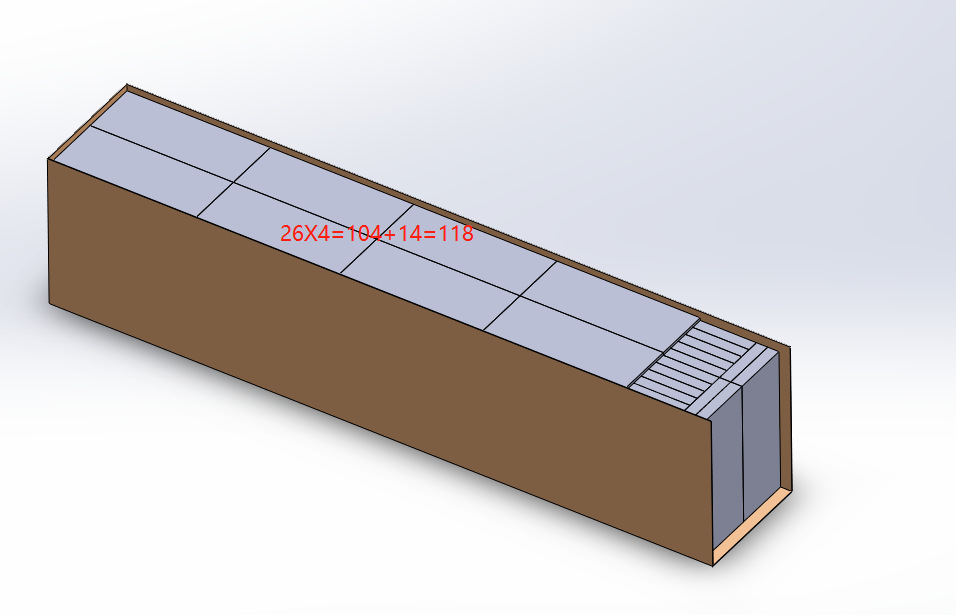

One 40HQ can be loaded with 118 units.
We can also customize according to your demand.

Any change of technical parameters, there is no further notice.
