Small Seeds Thresher Experimental Use for College Wheat Barley Oat Seed Threshing

【Features】:Small Experimental Use Seeds Thresher for College Wheat Barley Oat Seed Threshing

E-mail:ugoodmach@gmail.com

Brief Introduction
Features
Technical Parameters
Related Cases

Brief Introduction:

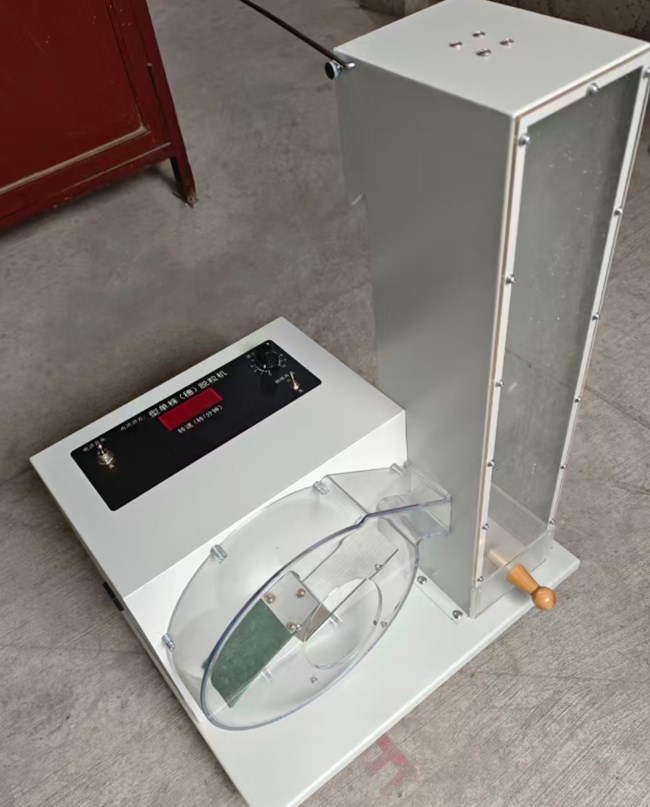

Small Seeds Thresher Experimental Use for College Wheat Barley Oat Seed Threshing :
This thresher is used in experimental threshing for wheat, barley, oat, and other similar crops.

Key design features to ensure no seed damage:

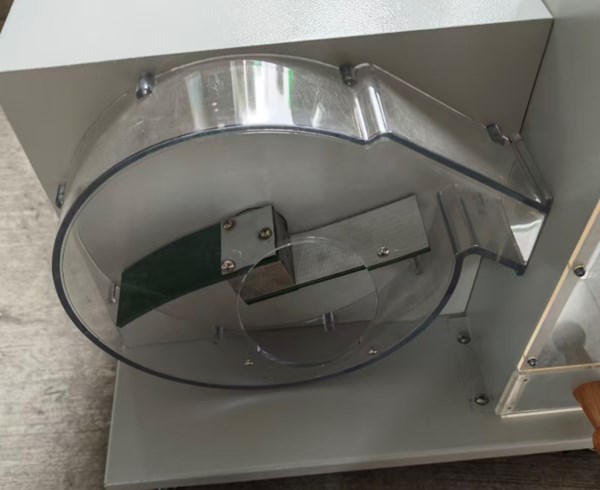

The fan blades are made of leather belts with a rubber layer inside the outer shell. The blown seeds still hit the rubber, preventing any seeds from breaking.
Small Seeds Thresher Experimental Use for College Wheat Barley Oat Seed Threshing

Small Experimental Use Thresher for College Wheat Barley Oat Seed Threshing

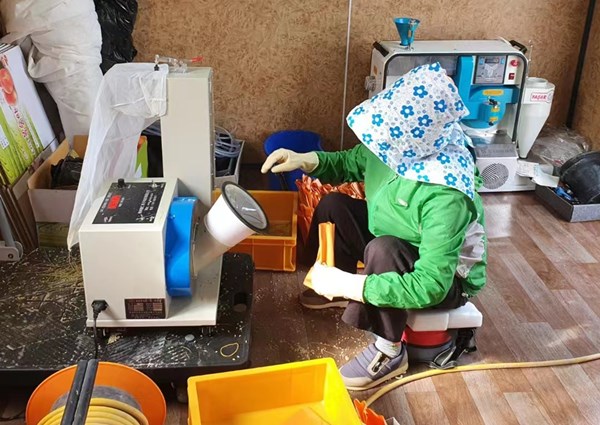

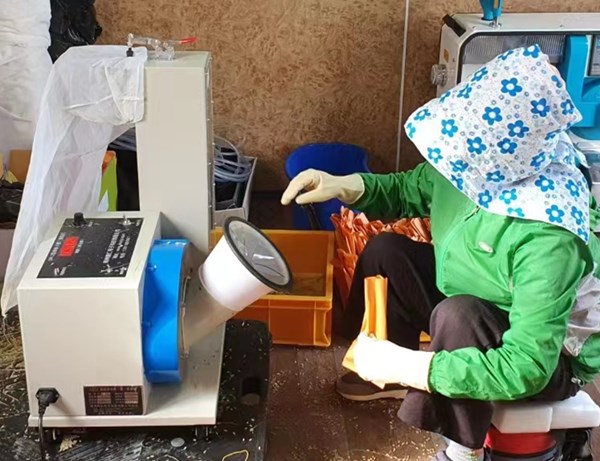

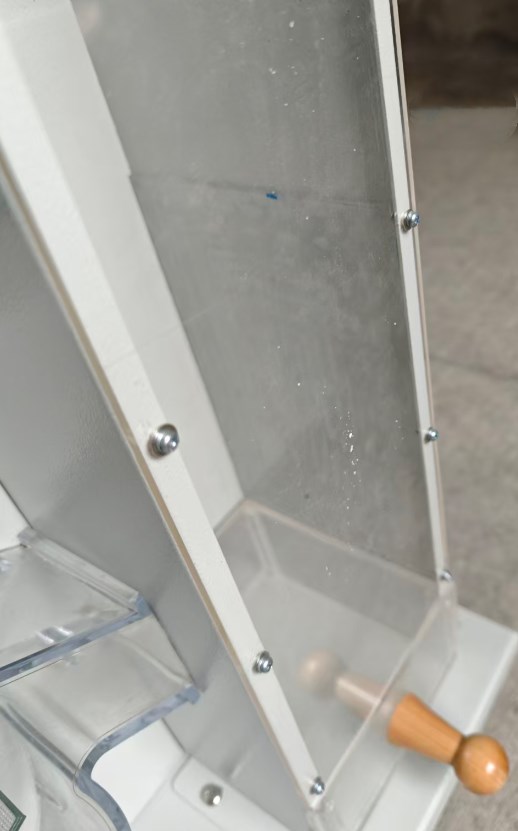

And we design a protective cover on the outside of the threshing section, and the feed inlet also has a splash guard film to prevent wheat grains from occasionally splashing out:
Small seeds thresher for lab experimental use

Small seeds thresher for lab experimental use

Features:

1. High threshing rate: >99.9%
2. No broken rate to the seeds.
3. Continuous working for a long time.

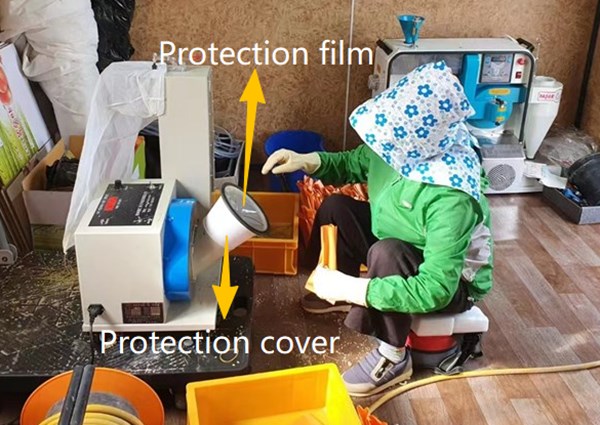

4. We design the protection cover and protection film to prevent injuring in operation:
Small seeds thresher for lab experimental use

5. It has the net bag for chaff collecting, keeping working environment clean. Chaff and seeds are totally separated.
6. Threshing speed can be adjusted according to the raw crops moisture rate. Higher speed for greater moisture.
7. It can thresh both single plant and multiple plants.

Technical Parameters:

1. Power source: 220VAC/50~60Hz. And the motor can be customized according to your local voltage.
2. Power: 1kW
3. Range of speed regulation: 0-4000 turns/minute
4. Speed adjustment mode: PWM stepless speed regulating
5. Display mode: 4 digital tube display
6. Motor type: direct current permanent magnet motor
7. Production efficiency: 650 plants/hour
8. Residual rate: 0
9. Threshing rate: >99.9%
10. Broken rate: 0
11. Cleaning time: 0s
12. Continuous working hours: continuous working for a long time
13. Size and weight: 470X360X680mm, 20kg
14. Model: DR-2 with protection cover and protection film (the old version model is UGT-E2)

Any change of technical parameters, there is no further notice.
