25kg 50kg 100kg Weighing Packaging Sewing Machine Grain Corn Granules Particles Powder Quantitative

【Features】:Weighing and packaging machine is mainly composed of four parts: automatic weighing device, conveying device, sewing device and computer control.

E-mail:ugoodmach@gmail.com

Brief Introduction
Features
Technical Parameters
Related Cases

Brief Introduction:

Weighing and packaging machine (for bags 25kg, 50kg and 100kg) application range:

It is widely used for automatic weighing, packaging and edge sealing for grain, feed, fertilizer, rice, seeds, monosodium glutamate, salt, chemical raw materials, plastic particles, etc.

Weighing and packaging machine is mainly composed of four parts: automatic weighing device, conveying device, sewing device and computer control. It integrates feeding, weighing, bag clamping, packaging and conveying, and sewing. Computer automatic measurement, continuous operation and accurate measurement. Improve the exhaust system and good sealing performance, double sealing, prevent dust leakage and ensure high purity of the product. It can also be customized according to customer needs.

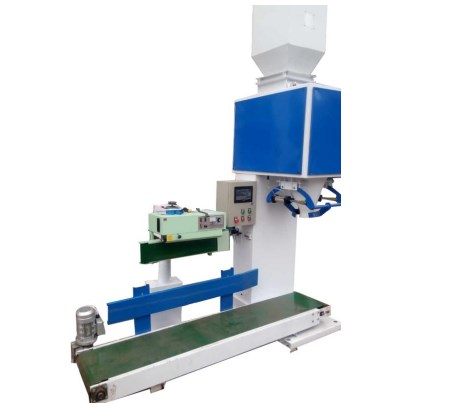

25-50kg Weighing Packaging Sewing Machine Grain Corn

Features:

1. Adopt advanced microcomputer control instrument;
2. Automatic error correction, over-tolerance alarm, automatic fault source diagnosis and other functions;
3. All parts in contact with materials are made of stainless steel, which has a long service life;
4. The conveying motor adopts aluminum alloy stepless speed regulation type;
5. Reserve printer interface;
6. Reserve RS232 serial port for data communication with peripheral management system;
7. Through the automatic control of the instrument, realize the two-speed feeding to ensure the feeding speed and accuracy;
8. Manual bagging, double cylinder holding, high degree of automation, reliable work, simple operation;
9. The instrument has high sensitivity, fast sampling speed, strong software function, standard interface, and can communicate with computer.

Technical Parameters:

Applicable materials: granular materials
Rated weighing: 25～50kg ~ 100kg. And this can be controlled and adjusted by the operator. The standard configuration is for 25-50kg. We can also customize the range 5kg~10kg~25kg & 100kg.
Weighing speed: 400 bags/hour
Display resolution: 10g
Measurement accuracy: ±1%
Air supply source: Air pressure: 0.8MP, air consumption: 0.5m³/h
Power supply: Packing scale: AC220V/50HZ, conveying sewing bag: AC380V/50HZ (can be customized according to the user's local voltage and Hz)
Total power: 3kw
Installation height: 3.2m, installation length: 2m, installation width: 1m.
Temperature range: -10～40℃
Relative humidity: ≤90% RH (no condensation)

Any change of technical parameters, there is no further notice.

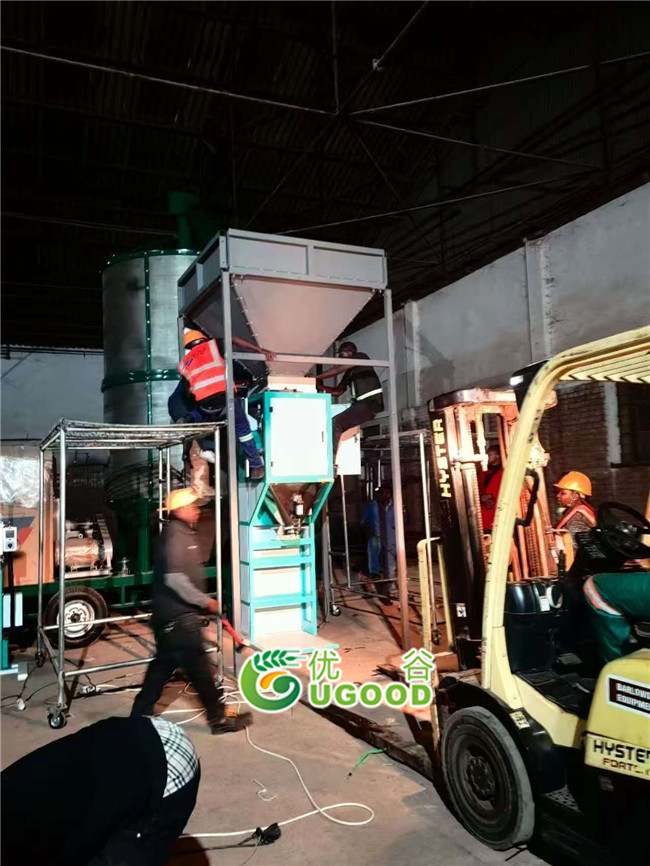

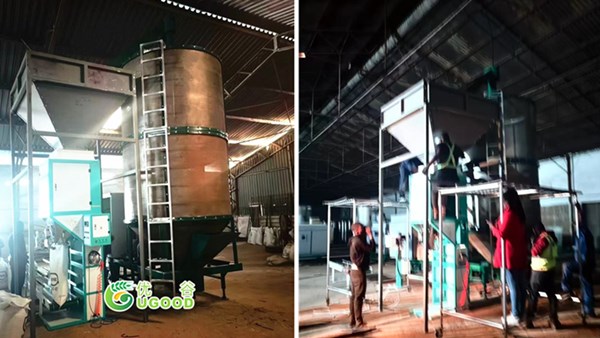

Related Cases:

>>Learn more
