Brief Introduction:

Stationary Grain Dryer Seeds Drying Machine with Batch Type Circulation:
It is suitable for efficient drying for all cereals, grains and seeds, such as maize, coffee bean, wheat, rice, barely, millets, sunflower seed, soybean, etc. It is suitable to all kinds of farm and rice processing factory. The drying layer is a horizontal 8-slot structure, including an automatic moisture measurement reference instrument, a computer control cabinet, an elevator, and a fan.

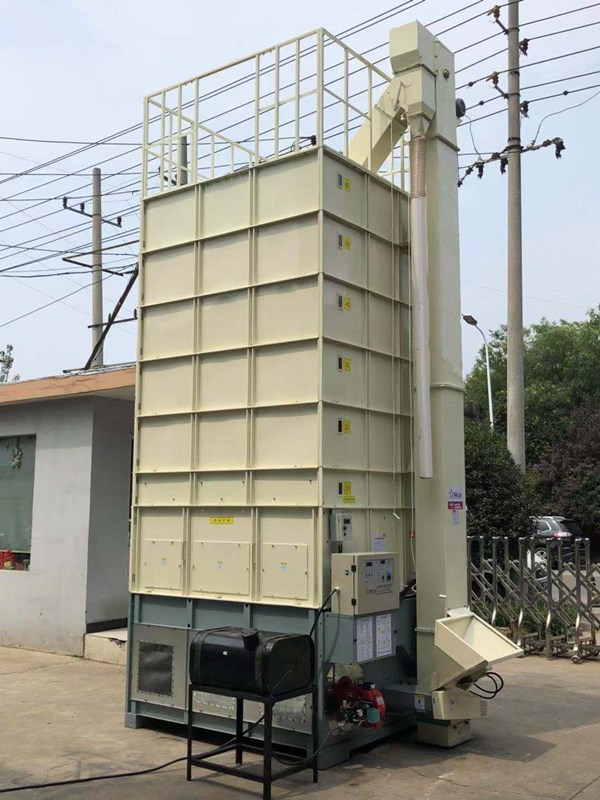

Stationary Grain Dryer Seeds Drying Machine

Features:

Small footprint;
Low temperature cycling;
Very low breaking ratio;
Galvanized design, durable quality;
Easy installation, operation and maintainance;
Available drying for many different material;
Professional after sales service with technical support and 5-year quality guarantee;
Batch type recirculating or continuous system;
We can meet your any special requirements, such as: insulation, special heat source (biomass, rice husk, diesel, coal, electric, steam, etc.), special design, special accessories, etc.

Technical Parameters:

Type		5T Grain dryer with batch type circulation
Volume(t)	Paddy（ 560kg/m3）	5.0
Volume(t)	Wheat（680kg/m3）	6.0
Outer dimension（mm）	Length×Width×Heigh	4750×2472×5960
Whole weight(kg)		1610
Handling capacity (kg/h) (range of moisture reduction from 25% to 14.5%)		500-700
Drying capacity(t••%/h)	Paddy	4.0
Drying capacity(t••%/h)	Wheat	5.0
Husk furnace hot blast stove	Outer dimension（mm）	250013001900
	Ignition mode	Manual ignition
	Fuel consumption（kg/h）	40-60
Fuel		Paddy Husk
Blower motor power (kw)		5.5
The total power of Motor(kw)/ Voltage(v)		8.55/380
Time of feeding(min)	Paddy	30～40
Time of feeding(min)	Wheat	35～45
Time of Discharging(min)	Paddy	30～40
Time of Discharging(min)	Wheat	30～45
Moisture reduction rate per hour	Paddy	0.4～0.8％
Moisture reduction rate per hour	Wheat	0.7～1.0%
Automatic control and safety device	Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

Any change of technical parameters, there is no further notice.
