Seeds Grain Gravity Separator Screening Cleaning Machine

【Features】:Seeds Grain Gravity Separator Screening Cleaning Machine can clean various kinds of seeds efficiently.

E-mail:ugoodmach@gmail.com

Brief Introduction
Features
Technical Parameters
Related Cases

Brief Introduction:

Core Working Principle: The seed gravity separator utilizes the combined effects of airflow and vibration to create stratification of seeds on the sieve bed. Higher-density, high-quality seeds sink to the bottom, flowing upwards along the sieve surface; while lower-density, inferior seeds (such as insect-damaged, moldy, and chaff) remain suspended on the surface, flowing downwards and ultimately exiting from different outlets. This sorting method effectively removes various impurities.

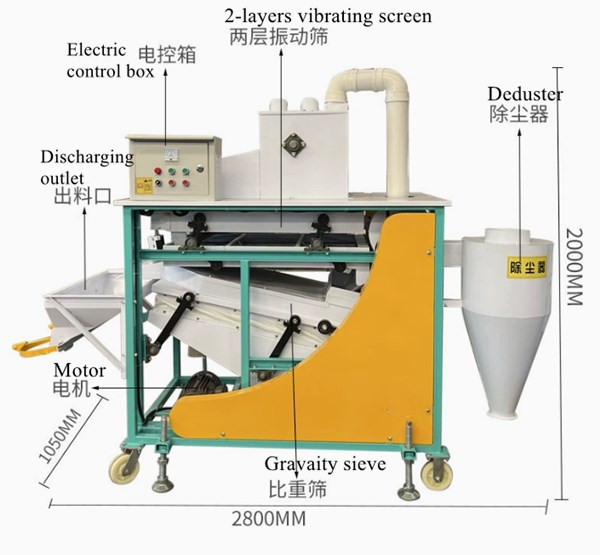

Workflow: Seeds are fed into the machine chamber via an elevator. First, dust is removed, and air separation occurs simultaneously. The seeds then pass through a first vibrating screen to remove large impurities, followed by a second vibrating screen to remove smaller impurities. Finally, they enter the gravity screen, where weight separation removes shriveled, broken, hollow, moldy, and weed seeds, among other impurities.

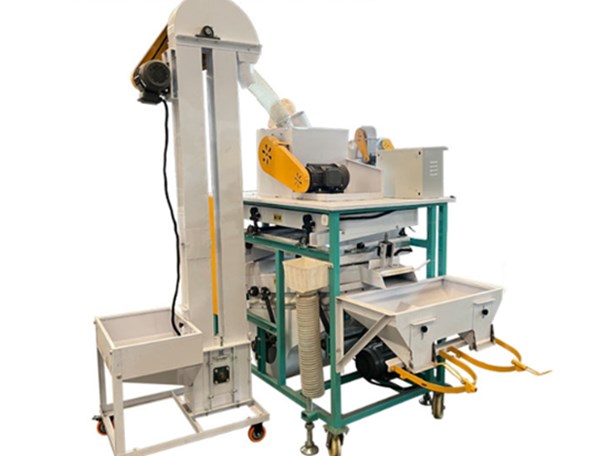

Seeds Grain Gravity Separator Screening Cleaning Machine

Seeds Grain Gravity Separator Screening Cleaning Machine

seeds gravity separator screening cleaning machine

Features:

1. High sorting accuracy, improving seed quality: Effectively removes lighter impurities such as moldy, spoiled, insect-damaged, smut-affected, and chaff-affected seeds, significantly improving the thousand-seed weight, germination rate, and uniformity.

2. Versatile and widely applicable, suitable for various grain seeds, as well as vegetable and forage seeds. By changing the screen plates and adjusting the airflow, different types of seeds can be processed, achieving multi-purpose functionality.

3. Portable, facilitating easy relocation to different locations.

4. Stable operation and highly operable. Key parameters such as vibration frequency, screen bed inclination angle, and airflow are typically adjustable to adapt to different materials and achieve optimal selection results.

5. One-button start, very simple and safe operation.

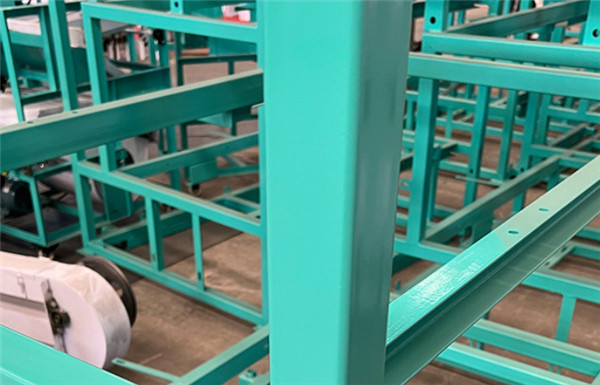

6. Upgraded and thickened materials, making the machine sturdy and durable. It also uses a brand-name motor.
Seeds Grain Gravity Separator Screening Cleaning Machine

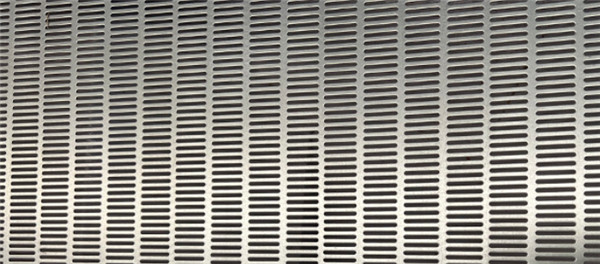

7. Stainless steel screen, durable and long-lasting.
Seeds Grain Gravity Separator Screening Cleaning Machine

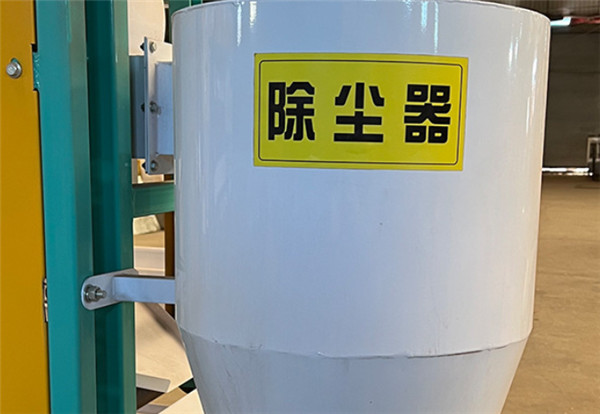

8. One-button dust removal design, no dust pollution, ensuring a healthy working environment for operators.
seeds gravity separator

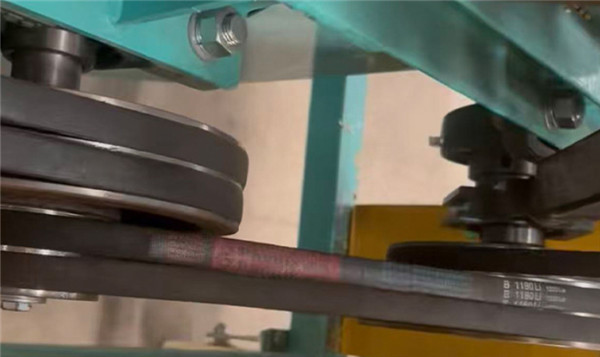

9. Wear-resistant belts, stable transmission, and low-noise operation.
seeds gravity separator

10. All-English operating interface.

Technical Parameters:

Model	Processing capacity	Power	Size	Weight
UGBZS-1	750 kg/h	2.2 kw	1.91.21.9 (m)	260kg
UGBZS-2	1500 kg/h	5.25 kw	2.71.22 (m)	550kg
UGBZS-2	3000 kg/h	6.95 kw	3.51.42.6 (m)	816kg

Any change of technical parameters, there is no further notice.
