Cassava Cutting Planting Machine Planter

【Features】:Cassava cutting and planting machine can simultaneously complete ditching, fertilization, cutting, sowing with cassava stalks, covering with soil, and vibration compaction. This cassava planter can handle both ridge planting and flat planting with a singl

E-mail:ugoodmach@gmail.com

Brief Introduction
Features
Technical Parameters
Related Cases

Brief Introduction:

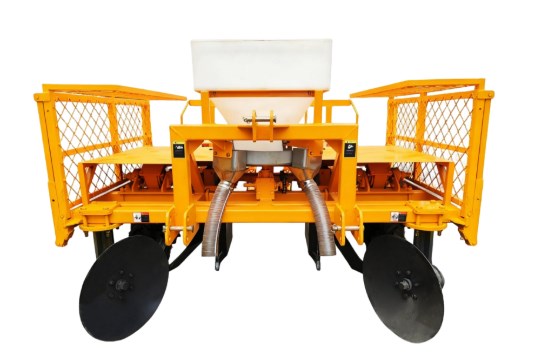

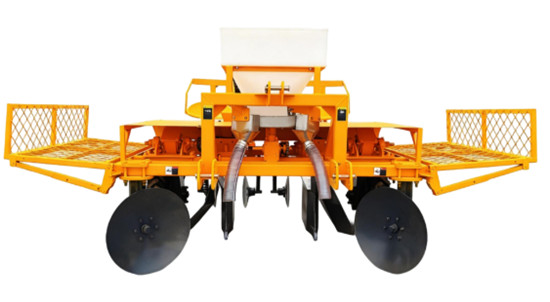

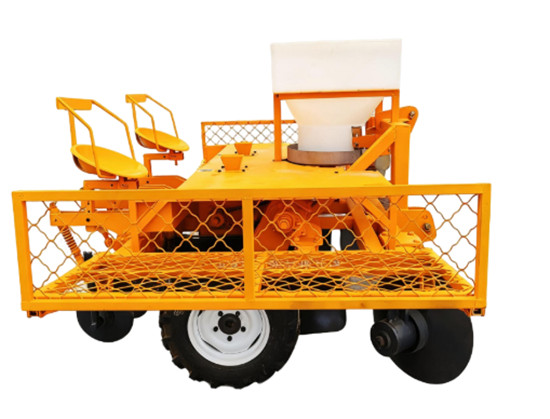

Cassava Cutting Planting Machine Planter is a ridge-type cassava planter, highly versatile and adaptable to various soil types.

The machine consists of a frame, ridge-forming disc, fertilization mechanism, cassava seed cutting assembly, planting mechanism, soil covering device, and ground wheels.

Workflow: The operator feeds the cassava seed into the cutting blade box inlet. After entering the cutting area, the seed is positioned between the anti-fall fixing cylinder and the cutting blade by the linkage of the cutting gear and the rotating shaft; the two sets of cutting blades close to complete the cutting. The cut seed falls into the field through the feeding cylinder, and then the soil covering disc gathers the soil, completely burying the seed.

This machine can complete the entire process of furrowing, ridge-forming, fertilizing, cutting, planting, and soil covering in one operation. It plants one ridge at a time, with two rows of cassava per ridge. Only one tractor driver and two planting workers are needed to operate it, effectively improving work efficiency, reducing labor costs and intensity, making it an excellent tool for large-scale cassava cultivation.

cassava planter

Features:

1. This machine can simultaneously complete ditching, fertilization, cutting, sowing with cassava stalks, covering with soil, and vibration compaction. This cassava planter can handle both ridge planting and flat planting with a single machine.
2. This is a ridge-type cassava planter with strong versatility, capable of operating in various soil types.
3. It effectively improves work efficiency, reduces labor costs and intensity, and is a valuable tool for large-scale cassava cultivation.

Technical Parameters:

Structural form: three-point suspension type
Number of planting rows: 2 rows
Row spacing: 600-700 mm
Planting method: real-time segmentation of whole cassava stems
Ground wheel diameter: 670 mm
Number of ground wheels: 2
Plant spacing: 800/1000 mm
Cassava seed cutting length: 160±30 mm
Working state dimensions (length x width x height): 2070X2260X1740 mm
Total mass: 950 kg
Effective load: 900 kg
Number of operators (excluding tractor operator): 2 people
Matching power: ≥73.5 kW (i.e. 100 horsepower) or above wheeled tractor
Adaptive slope: ≤6°
Adaptive land: tillage depth greater than 300, fine and loose soil layer, flat surface, no debris
Cut-off knife type: rotary flat knife
Cut-off knife size: 105×50×4 mm
Number of cut-off knives: 12
Cut-off knife power transmission form: Ground wheel drive
Fertilizer discharge type: grinding disc scraper type
Fertilizer box capacity: 165L
Fertilizer box power transmission form: chain drive
Panting type: Wide and narrow row planting type
70cm narrow row space and 110cm wide row space are recommended

We also have one-row cassava planter.

Any change of technical parameters, there is no further notice.
