UGT-10 Soybean Threshing Machine Soya Bean Thresher

【Features】:UGT-10 Soybean Threshing Machine: it can also thresh Maize, Wheat, Millet, Sorghum, Paddy, Lentil, Peas, Mung Bean & Chia.

E-mail:ugoodmach@gmail.com

Brief Introduction:

Soybean thresher or soybean threshing and cleaning machine UGT-10 includes both soybean threshing and cleaning function. It can also thresh and clean other various kinds of crops seeds, such as corn, chia, fonio, sesame, quinoa, sorghum, millet, vegetable seeds, wheat, paddy, lentil, mung bean and other beans, etc. It has the powerful vibration cleaning screen and air blower, so in fact it can also be used as a multi-crops cleaning machine! It has been exported to many countries and areas, such as Australia, Canada, Kenya, etc.:

Multi-Purpose Corn Threshing Machine

Multi-Purpose Corn Threshing Machine



Chia Thresher Chia Seeds Threshing and Cleaning Machine



You can get the clean seeds directly for packaging and sale. In principle, the seed clean rate is 100%. Because after the first round of threshing and cleaning, the cleanliness of the seeds has reached 99.5%, then you can put the seeds into the machine again for cleaning until you are satisfied!
UGT-10 Soybean Threshing Machine Soya Bean Thresher

UGT-10 Soybean Threshing Machine Soya Bean Thresher


Machine Introduction:
1) Our UGT-10 adopts thick steel plate with quench and carborization, better toughness and hardness (thickness 6mm, and 120kg weight, 40% heavier than other brands), and has less dust and low noise during work with tighter sealing at the connection. The production meets the national quality standard GB/T 5982-2017. It has passed SGS quality inspection and has the COC quality certificate issued by SGS.

Multi-Purpose Corn Threshing Machine

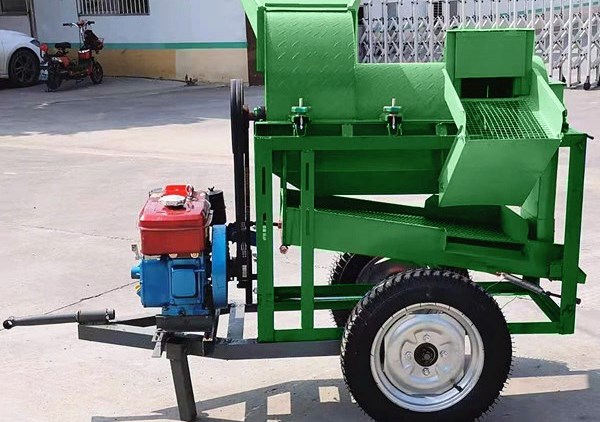

2) Power: 4hp diesel generator or 2.2-3kw electric motor. And electric motor can be customized according to your local voltage, hertz, single-phase or three-phase.

Multi-Purpose Corn Threshing Machine

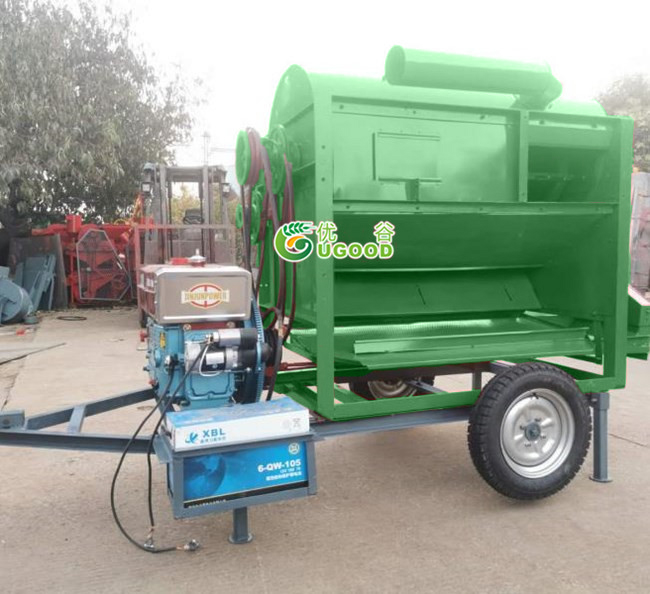

3) Portable frame with two big wheels: according to our African clients' requests, we make the portable frame that can be towed by a tractor in front. And the two big wheels (with diameter 50cm) are solid and durable, which can ensure there’s no any problem to run on the gravels road!

Multi-Purpose Corn Threshing Machine


4) The sieve mesh is tailor-made for your all kinds of seeds (the advantage of the factory). The correct sieves with accurate meshes are quite important for your threshing work, as too large or too small meshes will cause grain loss!

Multi-Purpose Corn Threshing Machine

multi purpose multi crops threshing machine sieves meshes


5) Powerful vibrating screen and air blower for seeds cleaning:

Multi-Purpose Corn Threshing Machine


Multi-Purpose Corn Threshing Machine


6) Provide sufficient spare parts for at least 5 years of use, 3-year warranty and detailed operation manual in English for each unit of the machine! During warranty period, if there is any quality problem with any part of the machine, our factory replaces the new part for free by express in 3 days!!
Multi-Purpose Corn Threshing Machine



Chia Thresher Chia Seeds Threshing and Cleaning Machine



Chia Thresher Chia Seeds Threshing and Cleaning Machine

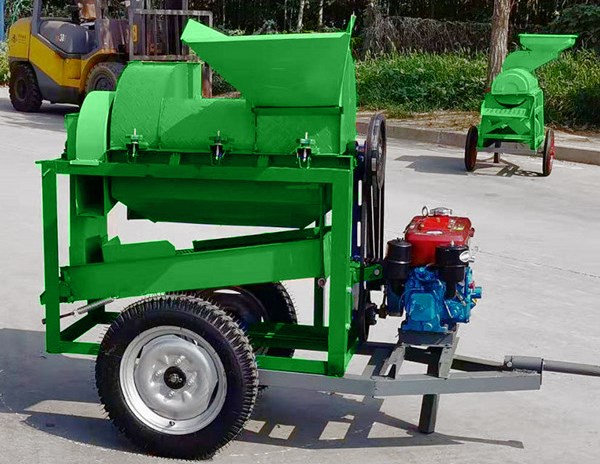

7) Diesel engine: We adopt China's most famous diesel engine brand Changchai

Multi-Purpose Corn Threshing Machine

Multi-Purpose Corn Threshing Machine

Features:

Advantages compared to other brands:
1. Thick steel plate with quench and carborization, better toughness and hardness (thickness 6mm, and 120kg weight, 40% heavier then other brands), and meets the national quality standard GB/T 5982-2017;
2. Less dust and low noise during work, tighter sealing at the connection;
3. The sieve mesh is tailor-made for all kinds of common seeds (the advantage of the factory);
4. Bigger wheels, easier to move, with wheels diameter 50cm;
5. Equipped with most famous brands diesel engines in China, like Changchai;
6. Passed SGS quality inspection, and has COC quality inspection certificate issued by SGS;
7. Longer service life up to 20 years;
8. Provide sufficient spare parts for at least 5 years of use, such as belts,ball bearings, swing hammers, screws, inner tubes of the tyres, etc.;
9. Provide 3-year warranty! During warranty period, if there is any quality problem with any part of the machine, our factory replaces the new parts for free by express in 3 days!!
10. Our engineers provide after-sales technical guidance for more professional operation;
11. All English markings of machines and diesel engines, and professional English manuals, or manuals in Spanish, French, Russian, etc. according to your demand.

Multi-Purpose Corn Threshing MachineMulti-Purpose Corn Threshing MachineMulti-Purpose Corn Threshing Machine

Technical Parameters:

Model

Power

Spindle Speed

Capcity

Not-threshed Rate

Total Loss Rate

Impurities Rate

Machine Size&

Weight

UGT-10

2.7-3.0KW



900-1000R/MIN

Maize: 1 T/Hour;

Beans: 800-1000 KG/Hour;

Wheat, Millet, Paddy, etc.: 700 KG/Hour

≤0.3%

≤1%

≤0.5%

Machine size: 1.41*0.52*1.1m

Weight: 120 KG




For larger capacity multi-crops thresher, please check Model UGT-125:
large chia thresher



Any change of technical parameters, there is no further notice.
