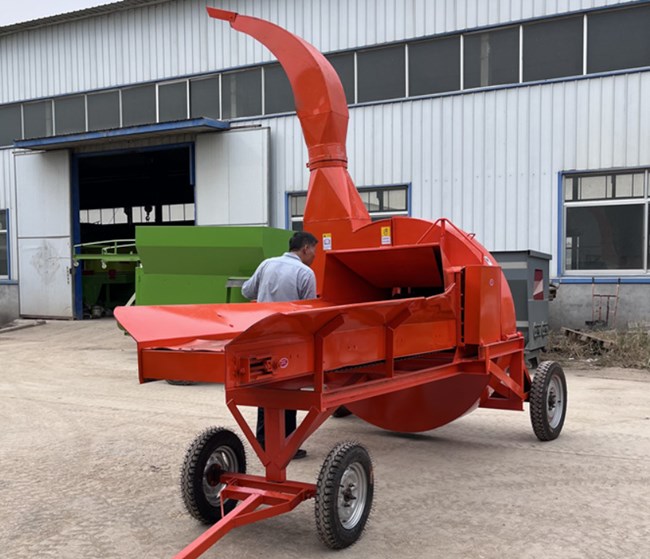

UG10A Ensiling Hay Cutter / Chaff Cutting Machine / Straw Breaker

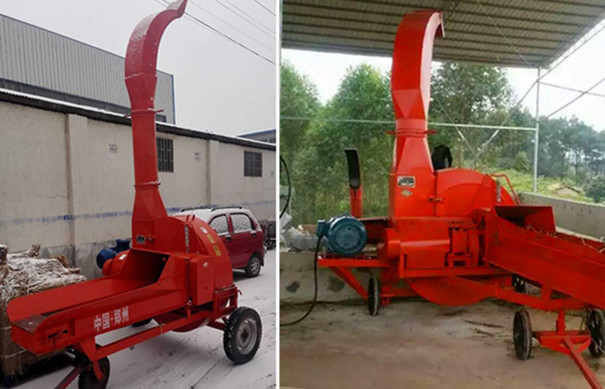

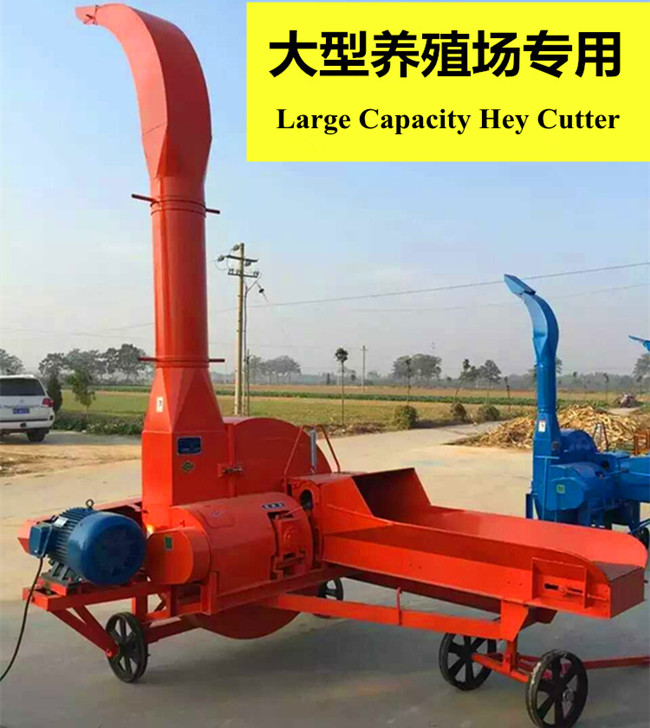

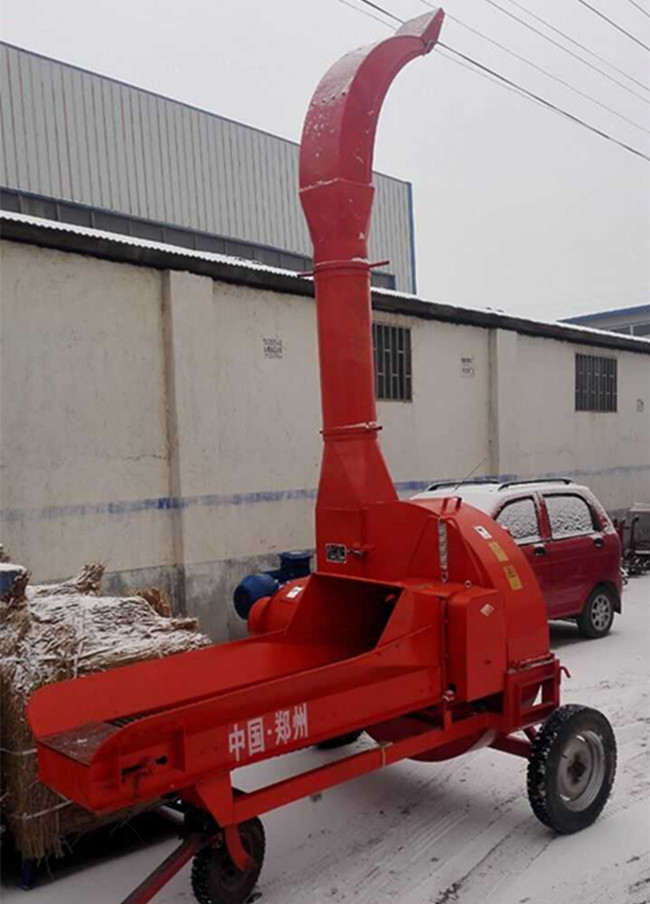

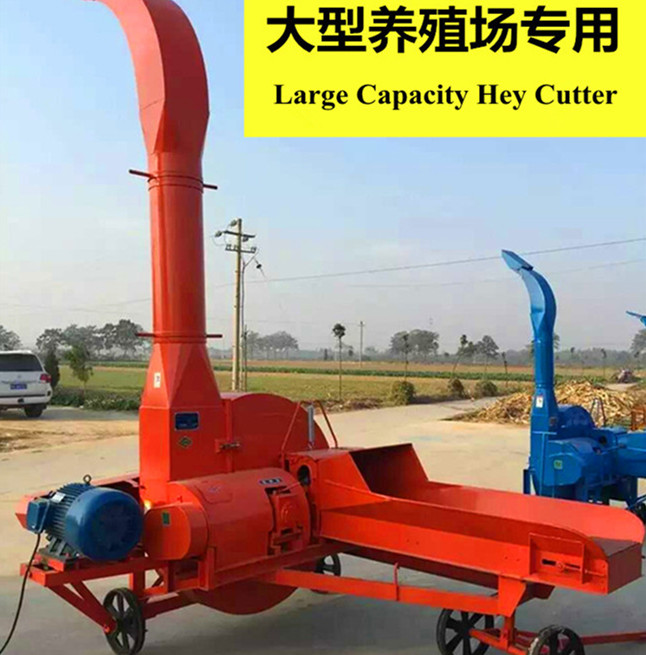

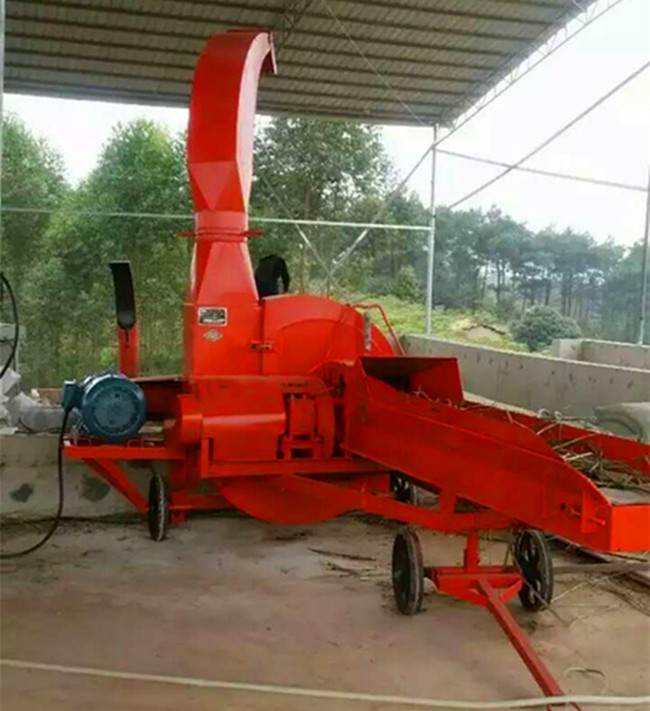

UG10A hay cutter can be used in large farm. It can cut various crops straw and halm very efficiently for feed of cattle, horse, sheep, pigs, etc..
Technical Parameter:
|
Subject |
UG10A |
UG10A Pull Type |
||
|
Matched Power |
motor |
Power（kW） |
15 |
------- |
|
Revolving speed（r/min） |
1440 |
------- |
||
|
tractor |
Transmission type |
Belt drive |
power-output shaft |
|
|
Power（Hp） |
25 |
25～50 |
||
|
power-output shaft revolving speed（r/min） |
------- |
540 |
||
|
Tractor hooking method |
------- |
Pulling rack |
||
|
Outline Size |
Transportation Size: L×W×H（mm） |
2620×1720×1850 |
2735×1800×1960 |
|
|
Operation Size: L×W×H（mm） |
2620×2140×4110 |
3510×1800×4210 |
||
|
Whole machine weight（㎏） |
880 |
880 |
||
|
Cutter revolving speed（r/min） |
500 |
|||
|
Blade quantity（pc） |
3pcs |
|||
|
power transmission shasft key quantity |
------ |
8 |
||
|
triangular belt |
B3000- five pcs |
B1900-for pcs |
||
Productivity:
|
Subject |
Data |
|
|
Cut hay length: 16mm after continuouse and even feeding |
Green maize straw (moisture content 78%) |
10 t/h |
|
Dry maize straw (moisture content 17%) |
3.5 t/h |
|
|
Dry straw(moisture content 17%) |
4 t/h |
|
|
Dry wheat straw(moisture content 17%) |
3 t/h |
|
|
Dry alfalfa(moisture content 20%) |
3.5 t/h |
|
|
Hay cutting |
3pcs blades |
12,18,25,35(mm) |
|
Blowing distance for finished products |
10～15(m) |
|
UG10A Ensiling Hay Cutter Structure:

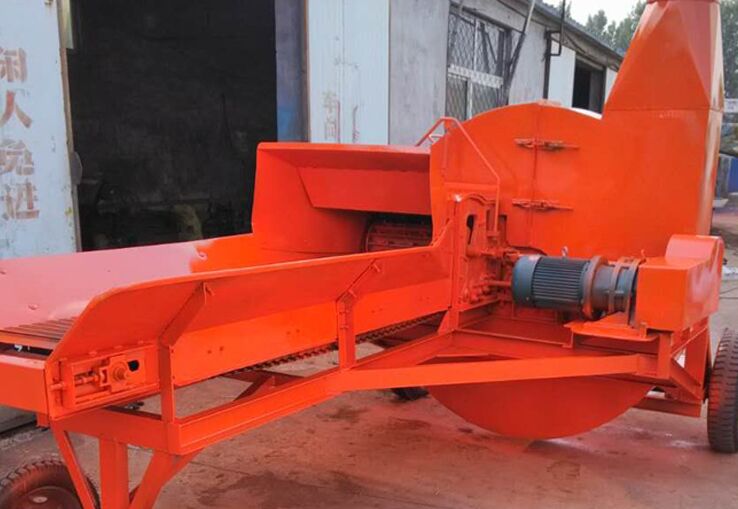

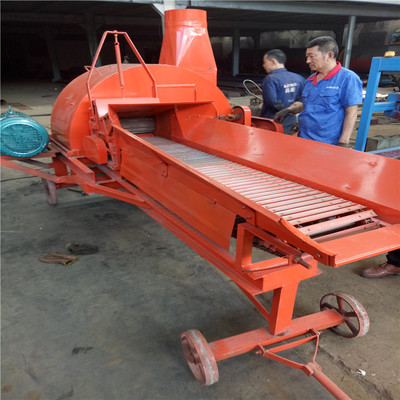

It mainly consists of feeding part, cutting part, throwing part, transmission part, protective device and machine rack.
Detailed structure:
1)Feeding part: mainly includes feeding stand, cutter stator and cutter stator fulcrum bearing.
2)Cutting part: mainly includes moving blade, ctter disk, lock screw, tec.
3) Transmission part: mainly includes triangular belt, transmission shaft, gears, cardon joint, etc.
4)Protective device: mainly includes protective cover.
Hay cutter working principle:
It adopts motor or diesel as the matched power.
First, power transmission to principal axis.
The gear on the other end of the principal axis transfers the speed-controlled power to the grass-pressing roller through gear case and cardan joint.
When the raw material is sent into the part between upper and lower grass-pressing rollers, then the material is sent ito the cutting part with a certain speed by the roller. After being cut by the high-speed rotating cutter, the material is thrown out of the machine.
Hay cutter advantages:
1. National patent for our hay cutter machine. Advanced feeding mechanism, automatic feeding, conveyor chain is not wrapped around the grass, smooth feeding, high production efficiency.
2. Designed to have a knife safety guide device, to prevent eating knife accident, and machine is safe and reliable.
3. Unique speed gear box structure, easy to adjust the length of the grass, the box sealed and reliable, good lubrication.
4. Transmission part of the configuration of self-aligning rolling bearings and universal joint, compact, flexible operation, easy disassembly.
5. The largest domestic model, the highest efficiency of the chaff cutter to meet the requirements of the large capacity of cattle feed processing.
6. Blade selection of high-quality steel, refined by a special process, super wear-resistant; high-strength bolts, which is safe and reliable.
VIDEO:
Hay cutter advantages:
1. National patent for our hay cutter machine. Advanced feeding mechanism, automatic feeding, conveyor chain is not wrapped around the grass, smooth feeding, high production efficiency.
2. Designed to have a knife safety guide device, to prevent eating knife accident, and machine is safe and reliable.
3. Unique speed gear box structure, easy to adjust the length of the grass, the box sealed and reliable, good lubrication.
4. Transmission part of the configuration of self-aligning rolling bearings and universal joint, compact, flexible operation, easy disassembly.
5. The largest domestic model, the highest efficiency of the chaff cutter to meet the requirements of the large capacity of cattle feed processing.
6. Blade selection of high-quality steel, refined by a special process, super wear-resistant; high-strength bolts, which is safe and reliable.
Technical Parameter:
|
Subject |
UG10A |
UG10A Pull Type |
||
|
Matched Power |
motor |
Power（kW） |
15 |
------- |
|
Revolving speed（r/min） |
1440 |
------- |
||
|
tractor |
Transmission type |
Belt drive |
power-output shaft |
|
|
Power（Hp） |
25 |
25～50 |
||
|
power-output shaft revolving speed（r/min） |
------- |
540 |
||
|
Tractor hooking method |
------- |
Pulling rack |
||
|
Outline Size |
Transportation Size: L×W×H（mm） |
2620×1720×1850 |
2735×1800×1960 |
|
|
Operation Size: L×W×H（mm） |
2620×2140×4110 |
3510×1800×4210 |
||
|
Whole machine weight（㎏） |
880 |
880 |
||
|
Cutter revolving speed（r/min） |
500 |
|||
|
Blade quantity（pc） |
3pcs |
|||
|
power transmission shasft key quantity |
------ |
8 |
||
|
triangular belt |
B3000- five pcs |
B1900-for pcs |
||
Productivity:
|
Subject |
Data |
|
|
Cut hay length: 16mm after continuouse and even feeding |
Green maize straw (moisture content 78%) |
10 t/h |
|
Dry maize straw (moisture content 17%) |
3.5 t/h |
|
|
Dry straw(moisture content 17%) |
4 t/h |
|
|
Dry wheat straw(moisture content 17%) |
3 t/h |
|
|
Dry alfalfa(moisture content 20%) |
3.5 t/h |
|
|
Hay cutting |
3pcs blades |
12,18,25,35(mm) |
|
Blowing distance for finished products |
10～15(m) |
|
Any change of technical parameters, there is no further notice.
